Ceiling Mounted Modular

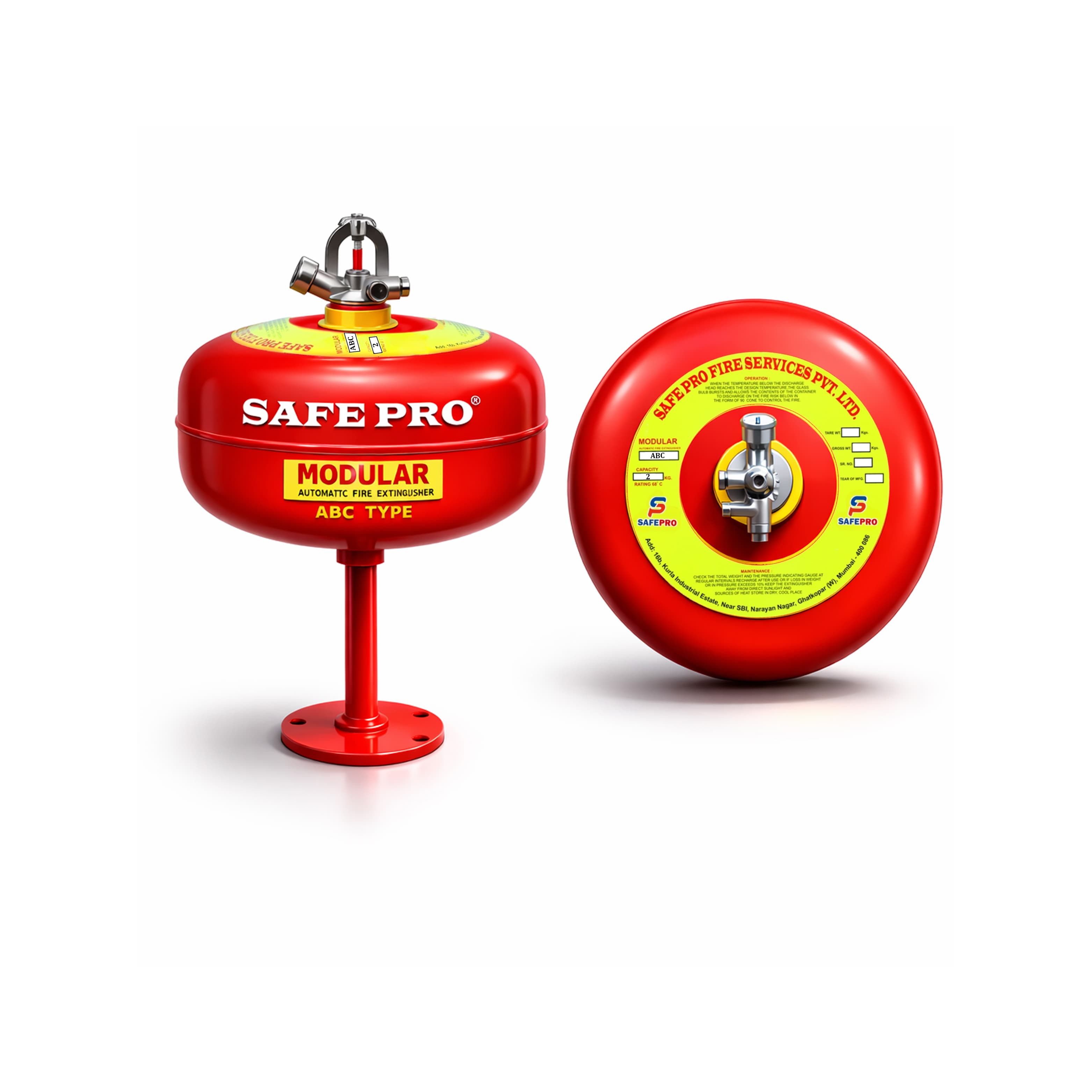

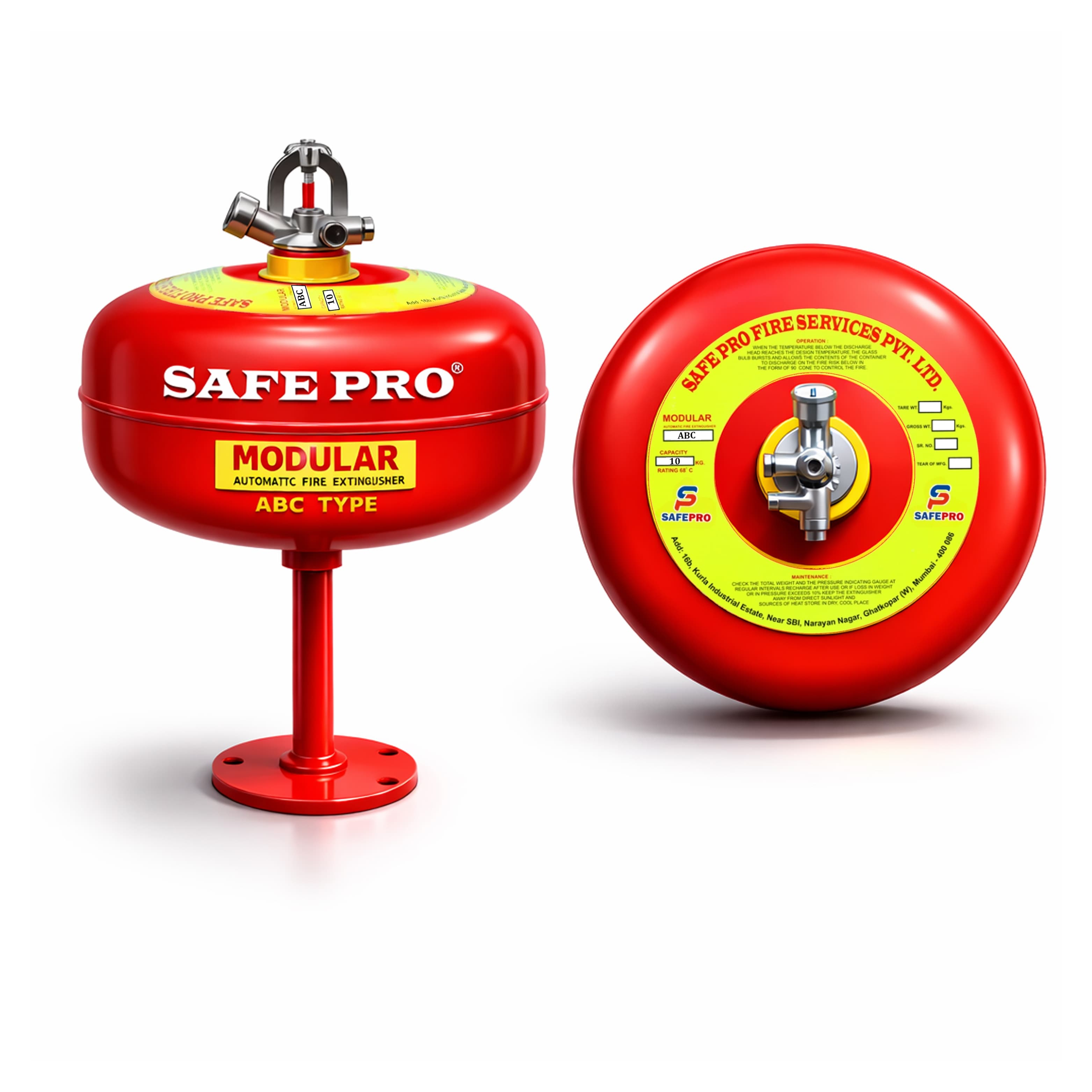

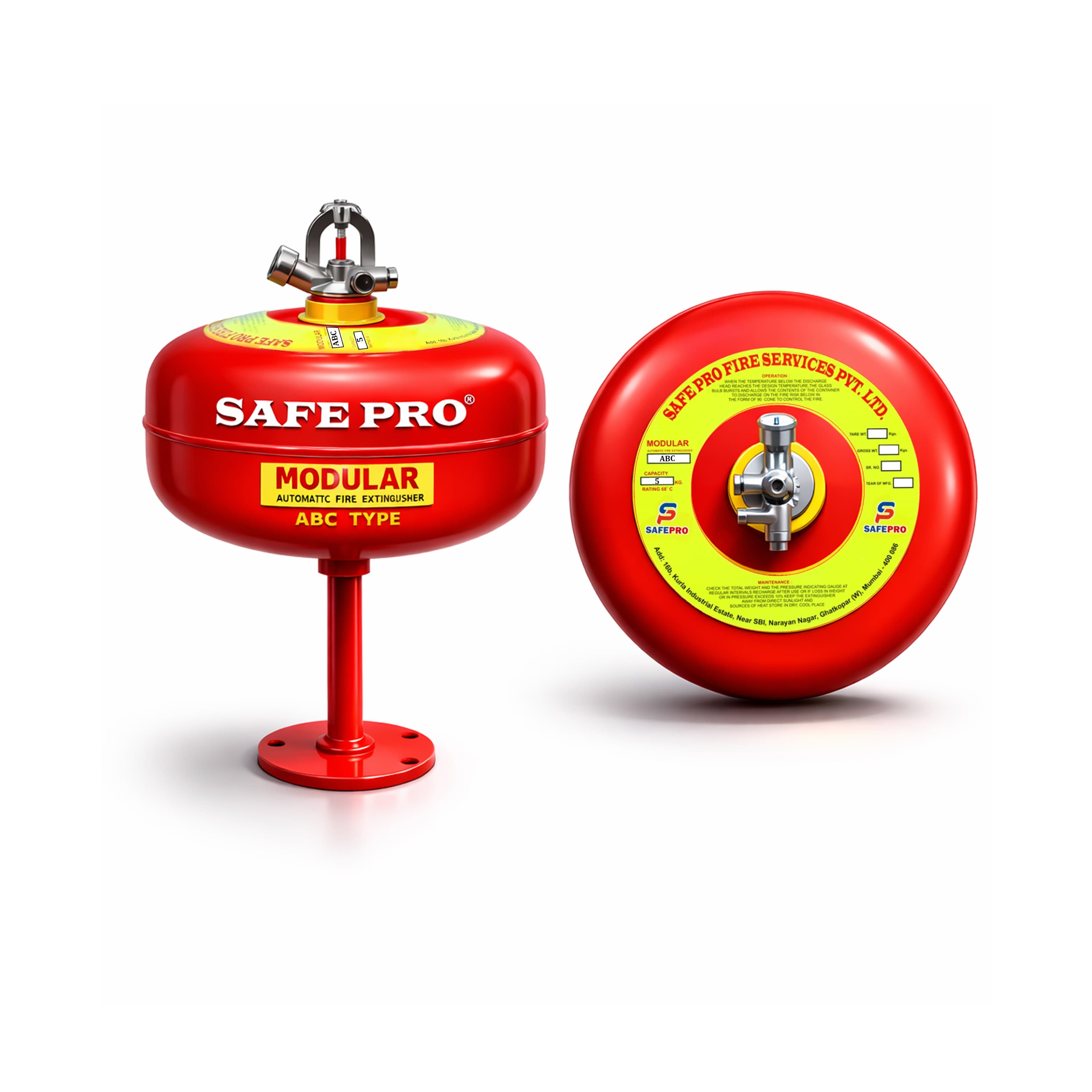

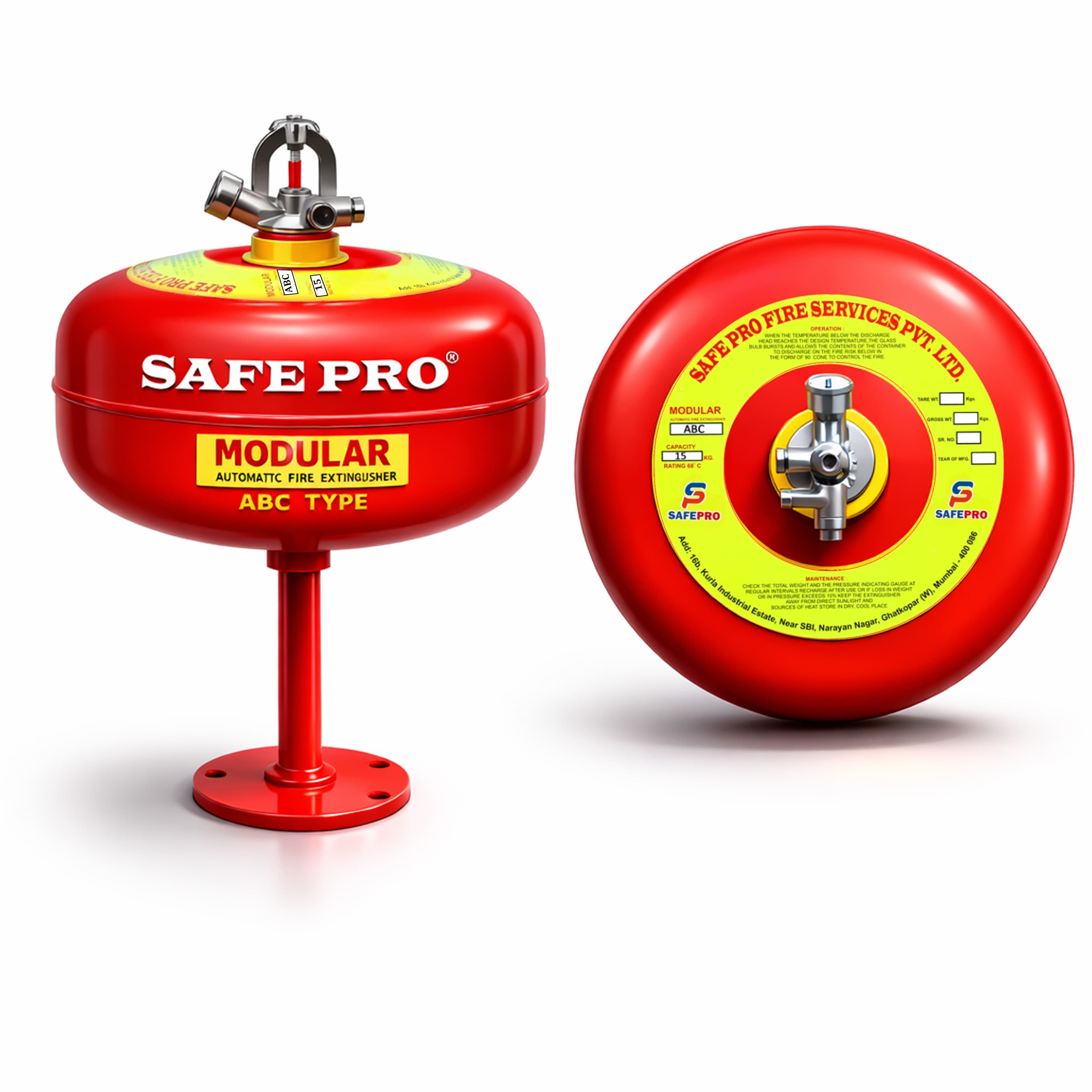

ABC Modular Fire Extinguisher
Fire Class:A/B/C
ABC Modular Fire Extinguishers are ideal for extinguishing Class A/B/C Fires. The Safe Pro ABC Modular Fire Extinguishers are perfect for use in panels & servers and the extinguishing agent is MAP (Mono Ammonium Phosphate) Dry Powder, making the fire extinguishers extremely effective and reliable.
Key Features
RAPID COOLING
effect
FULLY
refillable
ECO
friendly
PREVENT
re-ignition
USER
friendly
FULL RANGE
of spare parts available
Product Specifications
| CAPACITY (KG) | 1 | 2 | 4 | 6 | 9 |
|---|---|---|---|---|---|
| CYLINDER MATERIAL | M.S. | M.S. | M.S. | M.S. | M.S. |
| FIRE RATING | 1A 21B | 1A 31B | 2A 55B | 3A 89B | 4A 144B |
| EXTINGUISHING MEDIUM | POWDER | POWDER | POWDER | POWDER | POWDER |
| TEMPERATURE RANGE | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| OPERATING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR |
| TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR |
| EXPELLANT | NITROGEN | NITROGEN | NITROGEN | NITROGEN | NITROGEN |
Technical Specifications
| Product Type | ABC Modular Fire Extinguisher |
| Category | ABC Fire Extinguishers |
| Extinguishing Medium | MAP (Mono Ammonium Phosphate) Dry Powder |
| Available Capacities | 2,5,10,15 KG |
| Fire Class | A/B/C |
| Form Factor | Ceiling Mounted Modular |
| Recommended Use | Panels & Servers |
| Variant | Automatic |
