DOUBLE OUTLET LANDING VELVE

DOUBLE OUTLET LANDING VELVE

Project

Click image for large preview

Project
Project

ISI Marked

1 year warranty

Project

DUAL OUTLET

Design

Controlled

discharge

Full range

of spare parts are available

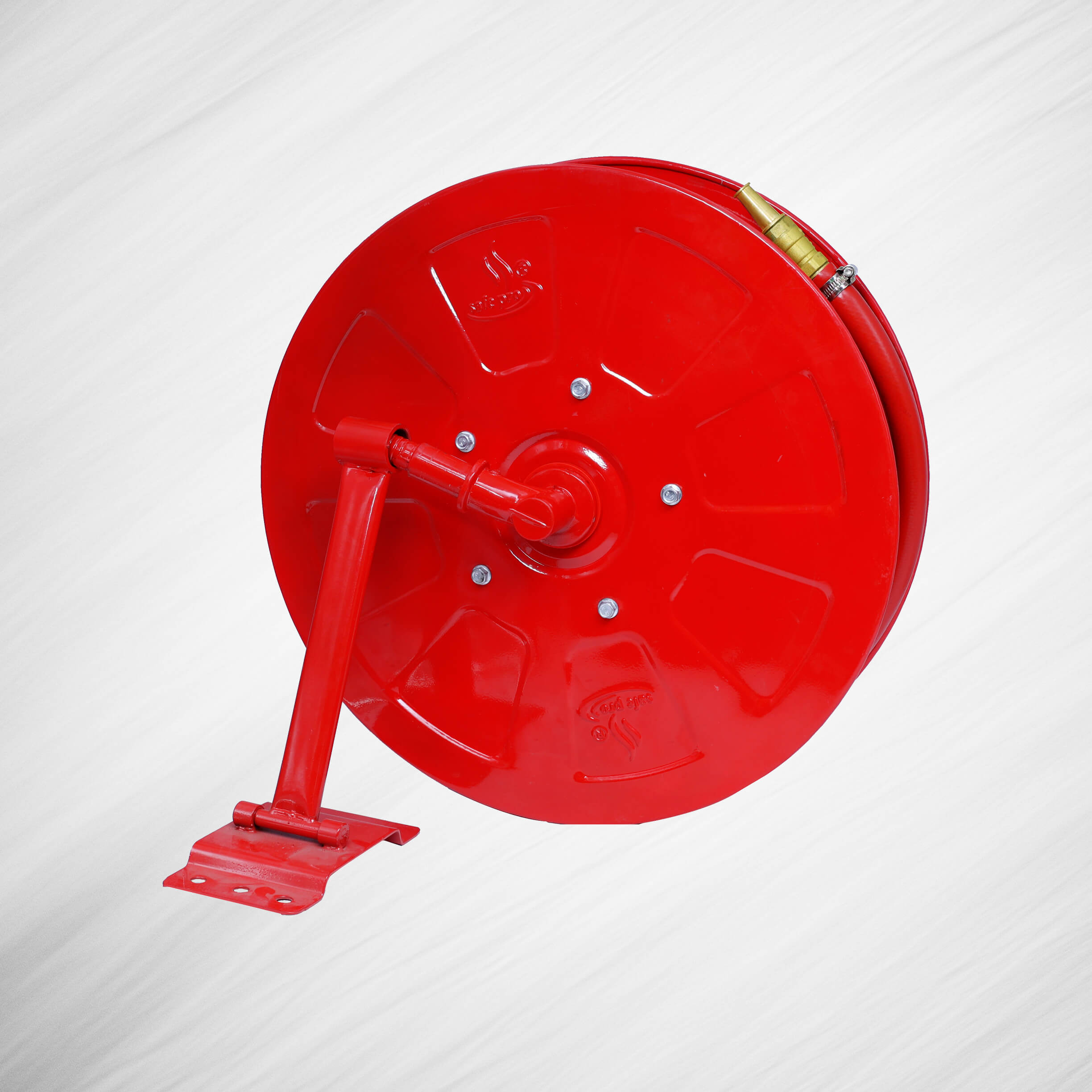

SWINGING TYPE WALL MOUNTED FIRST AID HOSE REEL DRUM

Technical Specification

  • Size : 63 mm
  • Inlet : 100 mm NB Flanged
  • Outlet : Female Instantaneous
  • Material : Gun Metal/Stainless Steel
  • Conforming Specification : IS:5290/1993
  • Performance Test

  • Hydraulic Test : Tested at 21 Kgf/cm2
  • Water Tightness Test : 14Kgf/cm2
  • Flow Test : 1800 LPM at 7kgf/cm2


  • TYPE OF MATERIAL STAINLESS STEEL GUN METAL
    BODY, ASSEMBLY STAINLESS STEEL IS : 3444 LTB 2 IS : 318
    VALVE SPINDLE STAINLESS STEEL IS : 6603 BRASS ROD IS : 319/320
    CAST IRON WHEEL IS : 210 IS : 210
    RUBBER WASHER IS : 937 (TYPE-A) IS : 937 (TYPE-A)
    SPRING STAINLESS STEEL IS : 6528 PHOSPHORUS WIRE IS : 7608
    GLAND PACKING-ASBESTOS THREAD IS : 4687 (TYPE-3) IS : 4687 (TYPE-3)
